Produktinformationen "TEN09R200M60.0E14|Tungaloy"
70deg face mills with double sided pentagonal inserts.
Eigenschaften
| Application: | Face Milling |
|---|---|
| Tool Type: | 75 Facemills |
| Body Material: | Steel |
| group_id: | 127 |
| FamilyName: | TEN09R/L |
| product_pic: | 37 |
| product_drw: | 37 |
| ToolType: | Tool |
| Unit: | M |
| FamilyPriority: | 25 |
| PackSize: | 1 |
| PricePer: | 1 |
| fixed_lot_multiplier: | 1 |
| product_code: | TUN6797267 |
| ProductName: | TEN09R200M60.0E14 |
| COO: | JAPAN |
| UOM: | EA |
| hazard_material: | 0 |
| oversize_product: | 0 |
| FamilyDesc: | 70deg face mills with double sided pentagonal inserts. |
| FamilyShortDesc: | 70deg face mills with double sided pentagonal inserts. |
| Vendor: | 550 |
| Link: | https://www.imc-companies.com/Tungaloy/tcat/e.asp?cat=6797267 |
| Produktlinie: | DoPent |

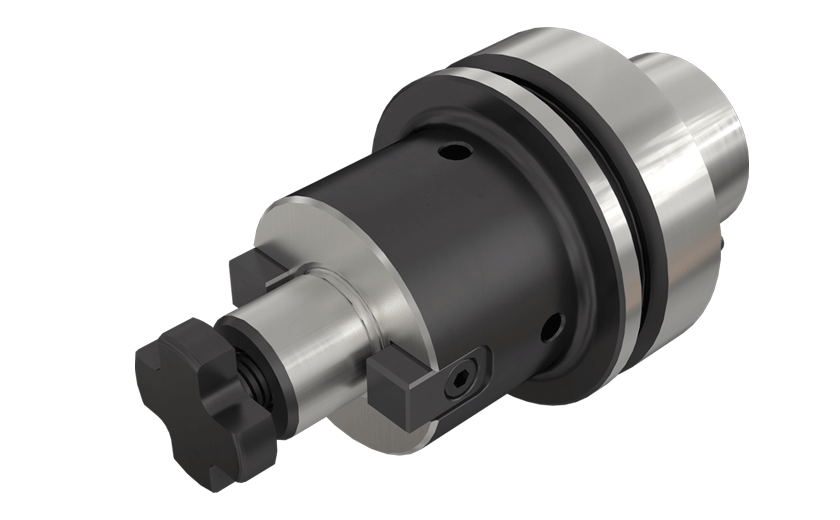

| LogoPic1: | 508 |
| InfoPic: | TR372 |
| Remarks: | APMX may vary with insert type. Please select neutral inserts PN*U0905GNEN ** when using a left hand cutter. |
| StockSource: | IMC |
| FamilyBrand: | Tungaloy |
| BrandCode: | TUN |
| BrandName: | Tungaloy |
| APP1: | 553 |
| APP1Name: | Face Milling |
| TechFile1: | TR372 |
| DXF: | 6797267 |
| STP: | 6797267 |
| STPL: | 6797267 |
| Measurement Type: | Metric |
| Cutting Diameter (DC/DCX): | 206 mm |
| Package Weight: | 0.0000 |
| MSDS: | 07995 |
| Cutting Item Count (CICT): | 14 |
| LocalField1: | 2 |
| Connection Diameter Machine Side (DCONMS): | 60 mm |
| ManufacturerNo: | 6797267 |
| Cutting Diameter Maximum (DCX): | 205.73 mm |
| Functional Length (LF): | 63 mm |
| Cutting Direction (HAND): | Right Hand |
| Cutting Diameter (DC): | 200 mm |
| Master Insert Identification (MIID): | PNMU0905GNEN-MJ |
| Depth of Cut Maximum (APMX): | 6.4 mm |
| Overall Length (OAL): | 63 mm |
| UNSPSC: | 23242106 |
