EPYP12M025C25.0R03|Tungaloy
EPYP12M025C25.0R03|Tungaloy
Produktinformationen "EPYP12M025C25.0R03|Tungaloy"
High speed milling endmill with PCD insert for non ferrous materials
Eigenschaften
| Application: | Face Milling |
|---|---|
| Body Material: | Steel |
| group_id: | 138 |
| FamilyName: | EPYP12 |
| product_pic: | 1920 |
| product_drw: | 1920 |
| ToolType: | Tool |
| Unit: | M |
| FamilyPriority: | 86 |
| PackSize: | 1 |
| PricePer: | 1 |
| fixed_lot_multiplier: | 1 |
| product_code: | TUN2717583 |
| ProductName: | EPYP12M025C25.0R03 |
| COO: | ITALY |
| UOM: | EA |
| hazard_material: | 0 |
| oversize_product: | 0 |
| FamilyDesc: | High speed milling endmill with PCD insert for non ferrous materials |
| FamilyShortDesc: | High speed milling endmill with PCD insert for non ferrous materials |
| Vendor: | 10 |
| Link: | https://www.imc-companies.com/Tungaloy/tcat/e.asp?cat=2717583 |
| Produktlinie: | TungSpeedMill T/EPYP12 |

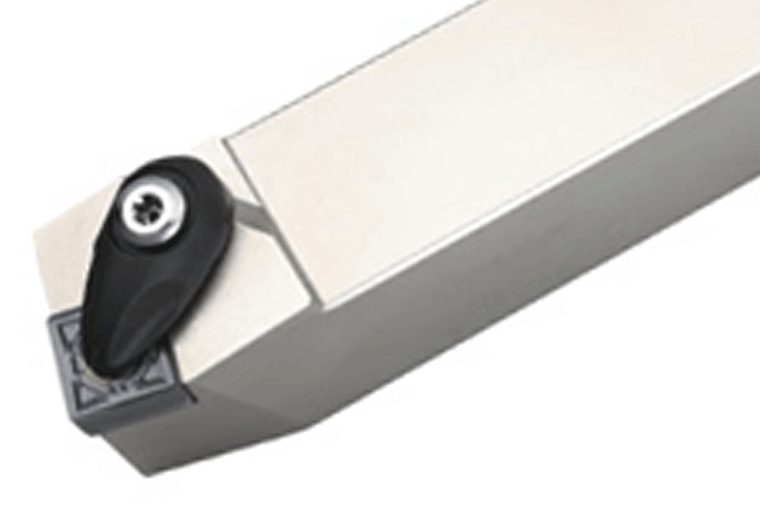

| LogoPic1: | 557 |
| Remarks: | DCX: Outside diameter DC: diameter with 01 type insert |
| StockSource: | IMC |
| FamilyBrand: | Tungaloy |
| BrandCode: | TUN |
| BrandName: | Tungaloy |
| APP1: | 553 |
| APP1Name: | Face Milling |
| ICON1: | TH7 |
| DXF: | 2717583 |
| STP: | 2717583 |
| STPL: | 2717583 |
| Measurement Type: | Metric |
| Cutting Diameter (DC/DCX): | 25 mm |
| Package Weight: | 0.7130 |
| MSDS: | 07995 |
| Cutting Item Count (CICT): | 3 |
| LocalField1: | 2 |
| Connection Diameter Machine Side (DCONMS): | 25 mm |
| ManufacturerNo: | 2717583 |
| Cutting Diameter Maximum (DCX): | 26.4 mm |
| Functional Length (LF): | 100 mm |
| Head Length (LH): | 50 mm |
| Cutting Diameter (DC): | 25 mm |
| Master Insert Identification (MIID): | YPEB12X3-1P02R-D |
| Depth of Cut Maximum (APMX): | 4 mm |
| Overall Length (OAL): | 100 mm |
| Tool Cutting Edge Angle (KAPR): | 90 Degrees |
| Shank Length (LS): | 50 mm |
| UNSPSC: | 23242106 |
